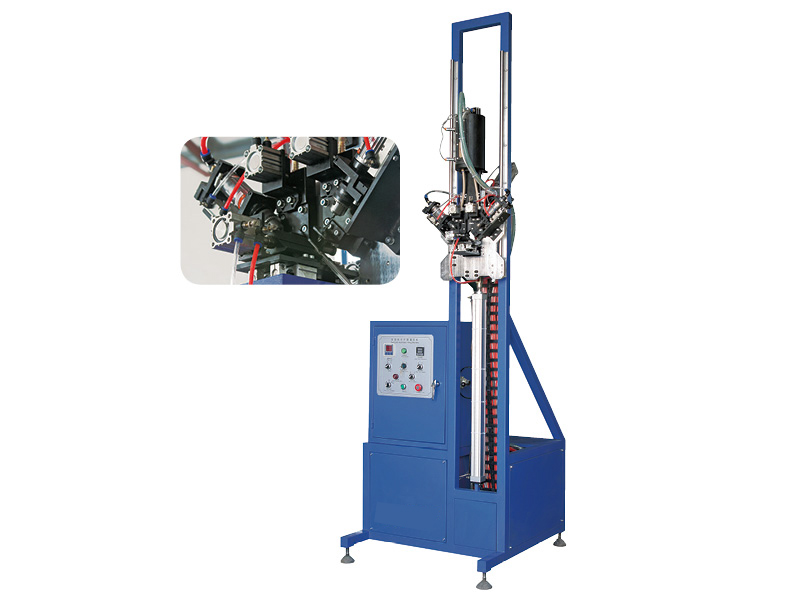

FZJ04 Automatic Desiccant Filling Machine

Clicks:

Automatic Desiccant Filling Machine
Product Details

The design of the bending aluminum frame is controlled by PLC, and it is filled in a closed condition, which solves the failure of the desiccant to absorb water vapor and improves the efficiency and the life of the insulating glass. It is a necessary equipment in the production of bending insulating glass.

The aluminum strip is punched and filled on the back, and automatically sealed.

It can be filled with automatic bending forming aluminum frame and ordinary straight spur aluminum frame.

The filling height can be adjusted according to the size of the aluminum frame.

The unique advanced feeding device can automatically replenish materials.


Technical Parameters:

Dimensions: 1000×820×2900mm

Air pressure: 0.5~0.8MPa

Voltage: 220V

Filling speed: 8~12s/piece (1m*1m9A)

The smallest aluminum bar: 6.5×5.5mm

The largest aluminum bar: 6.5×23.5mm

Consulting: FZJ04 Automatic Desiccant Filling Machine
