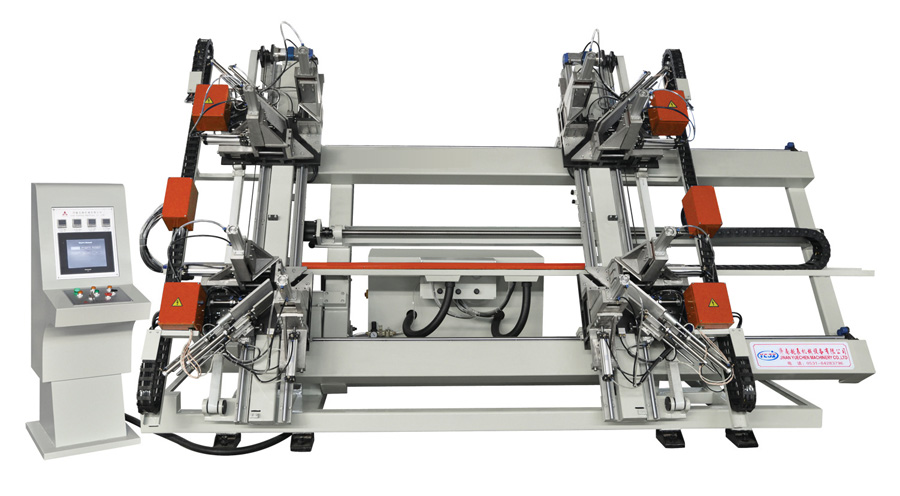

SHP4-CNC-3000B CNC Vertical Four-point Welding Machine

Clicks:

CNC Vertical Four-point Welding Machine
Product Details

● Automatic welding head positioning.

● The machine heads automatically back to the original position, easy operation.

● Feeding system adopts imported linear guide pair, with high accuracy and smooth working.

● Size tolerance compensation is available to increase welding precision.

● Common profile fixture along with the machine can meet various height profiles' processing requirement.

● The length located by ball screw makes high accuracy.

● Back plates are convenient to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increasing the welding strength.

● Imported computer control system, easy operation and high stability.


Model SHP4-CNC-3000B

Power supply 380V 50Hz

Input power 10Kw

Air pressure 0.6~0.8MPa

Air consumption 200L/min

Welding height 25~150mm

Welding width ≤140mm

Welding range 400×400~1800×3000mm

Overall dimension 4600×2000×2600mm
