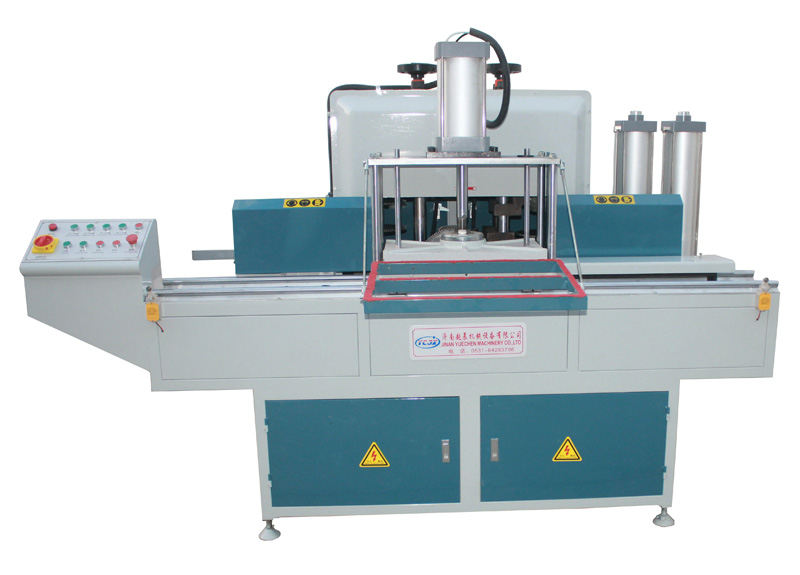

● Used for end milling of transom and door frames in aluminum and PVC profiles.
● Process multi-piece profiles in one clamp results high efficiency.
● Convenient tool guard adjustment, can be meet different processing requirement.
● Airdraulic damping cylinder adopted in feeding system, gives stable velocity.
● It has features of easy operation, reliable performance, advanced technique and convenient maintenance.
Model LXDB-250B
Power Supply 380V 50Hz
Input power 3×2.2kw
Air pressure 0.5~0.8MPa
Air consumption 150L/min
Motor rotation speed 2800r/min
Worktable range 0~1050mm
Max processing hole 40mm
Milling cutter diameter Φ250mm
Adjustment range 0~85mm
Overall dimension 3130×1100×1680mm
