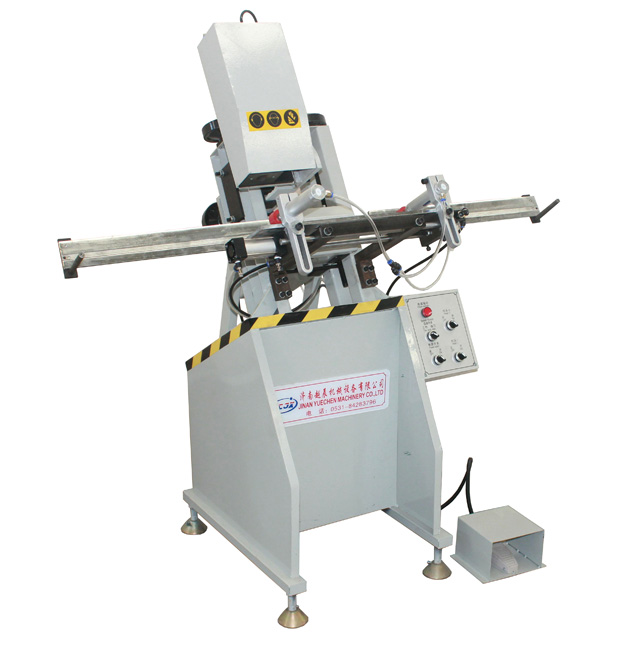

The machine processes all types of water slots and air pressure balance grooves.
The machine head is adjustable to meet different profiles.
Drilling and milling can be completed automatically at the same time.
It has the characteristics of high efficiency.
Model SXS2-30×6
Input voltage 220V 50Hz
Input power 0.9kw
Air pressure 0.4~0.6MPa
Air consumption 30L/min
Motor rotating speed 28000r/min
Max. milling length 50mm
Max. milling depth 40mm
Diameter of milling cutter φ4mm φ5mm
Overall dimension 2490×800×1650mm
